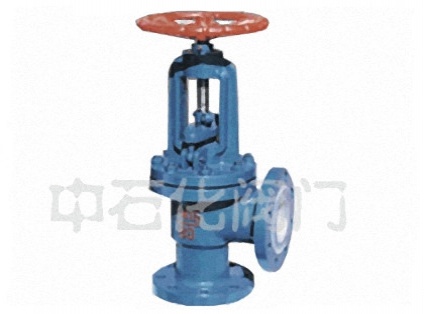

J44F46 fluorine angle valve refers to the opening and closing parts (valve) driven by the stem and lifting movement of the valve seat along the center axis, is a kind of common valves, mainly used to connect or disconnect the line of medium, generally not for regulating flow.

Order note:
If there is no selected model, please provide detailed parameters, such as medium, temperature, pressure, caliber, material and so on. Our technicians will select for you
Two. Provided that the selected model is available according to the selected model
Three, non standard products need to provide samples or confirmed by drawings
Note: the information is for reference only, or incomplete, so please feel sorry for the inconvenience. The company can choose according to different requirements and parameters. The company has a variety of sizes, pressure, different materials, connections, drive mode, to meet the different needs of various types of gate valve. Please contact 021-6651 8677 or consult online.

No Information

Nominal diameter: DN15~300 (mm) material of main parts are shown in table A2 basic types: manual J44F43 electric J944F3 J44F46 J944F46 flange valve (angle type) design and manufacture in accordance with the national standard China basic structure: nominal pressure angle type: PN1.0~2.5 (MPa)

Nominal diameter		standard value							reference value

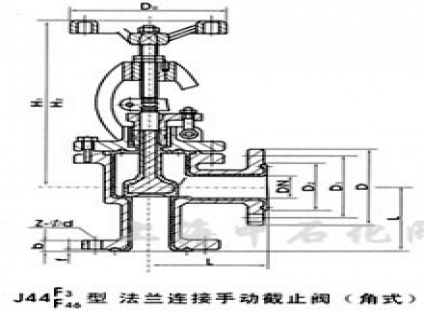

DN（mm）	NPS（inch）	L	D	D1	D2	F	B	Z-Φd	Do	H1	H2	W（kg）
DN（mm）	NPS（inch）	PN1.0MPa
15	1/2	65/90	95	65	45	2	14	4-Φ14	100	240	265	7
20	3/4	75-95	105	75	55	2	16	4-Φ14	100	245	270	7.5
25	1	80/100	115	85	65	2	16	4-Φ14	12	250	275	8
32	1 1/4	95/105	135	100	78	2	18	4-Φ18	0120	260	290	12
40	1 1/2	80/100	145	110	85	3	18	4-Φ18	140	290	325	14
50	2	115/125	160	125	100	3	20	4-Φ18	140	300	335	19
65	2 1/2	145	180	145	120	3	20	4-Φ18	160	355	400	27
80	-	155	195	160	135	-	22	4-Φ18	160	400	450	42
100	4	175	215	180	155	3	22	8-Φ18	180	455	495	50
125	5	200	245	210	185	3	24	8-Φ18	10	530	560	64
150	6	240/225	280	240	210	-	24	8Φ18	240	605	650	85
200	8	275	335	295	265	3	26	8-Φ18	240	650	770	105
250	10	325	390	350	320	3	28	12-Φ23	280	680	800	135
300	12	375	440	400	368	4	28	12-Φ23	280	710	835	155

15	1/2	65/90	95	65	45	2	14	4-Φ14	100	240	265	7
20	3/4	75-95	105	75	55	2	16	4-Φ14	100	245	270	7.5
25	1	80/100	115	85	65	2	16	4-Φ14	120	250	275	8.5
32	1 1/4	95/105	135	100	78	2	18	4-Φ18	140	260	290	12
40	1 1/2	80/100	145	110	85	3	18	4-Φ18	140	290	325	14
50	2	115/125	160	125	100	3	20	4-Φ18	160	300	335	19
65	2 1/2	145	180	145	120	3	20	4-Φ18	180	355	400	27
80	3	155	195	160	135	3	22	8-Φ18	240	400	450	42
100	4	175	215	180	155	3	24	8-Φ18	240	455	495	50
125	5	200	245	210	185	3	26	8-Φ18	280	530	560	64
150	6	240/255	280	240	210	3	28	8-Φ23	320	605	650	85
200	8	275	335	295	165	3	30	8-Φ23	360	650	770	155

15	1/2	65/90	95	65	45	2	16	4-Φ14	120	245	270	7.5
20	3/4	75/95	105	75	55	2	16	4-Φ14	120	250	275	8.8
25	-	80/100	115	85	65	2	16	4-Φ14	140	260	290	11
32	1 1/4	95/105	135	100	78	2	18	4-Φ18	140	290	325	13
40	1 1/2	100/115	145	110	85	3	18	4-Φ18	160	300	335	18
50	2	115/125	160	125	100	3	20	4-Φ18	180	355	400	31

Follow the norms	STDNARD
Design and manufacture	GB12233/GB12235
Structure length	GB12221/JB96
Flange size	JB78/JB79（GB，HG，SH）
Pressure test	GB/T13927
sign	GB/T12220
Supply commodity	GB/T12252
