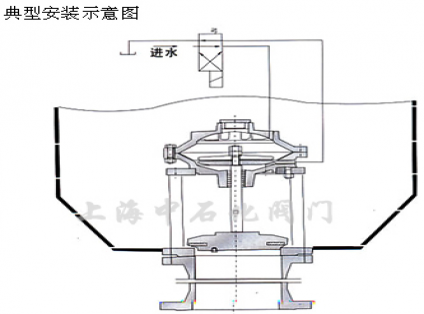

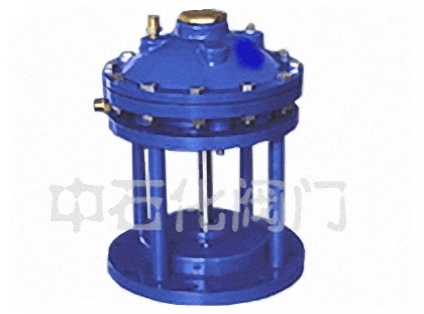

JM742X type diaphragm sink bottom dump valve, tank bottom dump valve, dump valve this product is installed at the bottom of all kinds of sedimentation tank, through the control of the valve to remove the bottom of the sediment and dirt.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.
Nominal pressure l.OMPa
Opening and closing action pressure: 0.l5 ~ 0.6MPa
Diaphragm drive medium: water, air
Applicable medium water, water sewage
Operating temperature: 0 ~ 80
