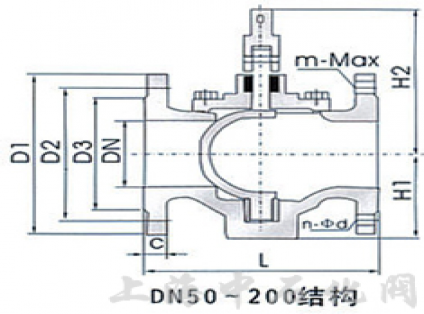

Eccentric hemispherical cock on the winning numbers of the company is the introduction of the latest international design concept and technology independently developed new products, with independent property rights. The valve adopts hemispherical structure, which can effectively remove the deposited particles in the medium. Eccentric structure makes the valve seat during the opening process and ball valve speed off, prolong the sealing life. The sealing surface is sprayed with wear-resistant nickel alloy to improve service life. Suitable for power plants, metallurgy, cement, paper and other industries of coal, ash, paper and other material conveying pipeline.
The valve body, valve cover, gland
Cock
valve seat
Bearing
Valve
Gray iron, ductile iron, carbon steel
Gray iron, ductile iron, carbon steel
Stainless steel, carbon steel +NBR
copper
Stainless steel, carbon steel +NBR
Nominal diameter DN:50-800mm
Nominal pressure PN:1.0MPa
Operating temperature: -19 DEG C -425 C
Applicable media: water, oil, sewage, liquid containing granular media
Drive: manual, electric, pneumatic
