Description Material Performance Product Size Specifications

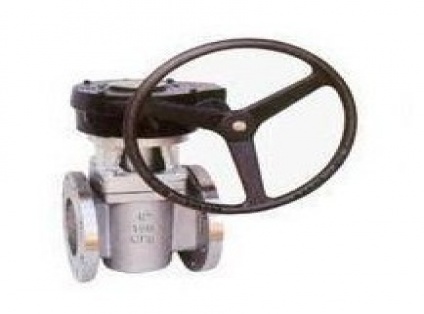

Plug seal between the movement with wiping effect, fully open can completely prevent the sealing surface and medium contact so can be used with suspended particles of medium. Plug valve cylinder

The closing part can be opened and closed by rotating 900 so the valve is very suitable for fast opening and closing occasions.

Plug valve structure is simple and easy to repair and clean, such as tight set circular dimension plug valve, unscrew the set nut, remove the gasket valve plug can be removed from the body, cleaning and maintenance.

No Information

Model	Pressure level(LB)	Test pressurePS(MPa)			Applicable medium	Applicable temperature (DEG C) PTFE
		housing	Seal (water)	Low pressure seal (gas)
X41F-150(LB)C X41F-300(LB)C X41F-600(LB)C	150	3.0	2.2	0.5~0.7	Water, steam, oil	≤150
	300	7.8	5.6
	600	15.3	11.2
X41F-150(LB)C X41F-300(LB)C X41F-600(LB)C	150	3.0	2.2	0.5~0.7	Nitric acid	≤150
	300	7.8	5.6
	600	15.3	11.2
X41F-150(LB)C X41F-300(LB)C X41F-600(LB)C	150	3.0	2.2	0.5~0.7	Nitric acid	≤150
	300	7.8	5.6
	600	15.3	11.2

pressure	Nominal diameter		size（mm）
	（in）	（mm）	D	D1	D2	L	H	d0	b-f	Z-∮d
150 LB	1/2	15	89	60.5	35	108	110	150	12-2	4-∮15
	3/4	20	98	70	43	117	115	150	12-2	4-∮15
	1	25	108	79.5	51	127	115	180	12-2	4-∮15
	11/4	32	117	89	64	140	135	270	13-2	4-∮15
	11/2	40	127	98.5	73	165	140	280	15-2	4-∮15
	2	50	152	120.5	92	178	150	300	16-2	4-∮19
	21/2	65	178	139.5	105	190	165	350	18-2	4-∮19
	3	80	190	152.5	127	203	180	400	19-2	4-∮19
	4	100	229	190.5	157	229	380	—	24-2	4-∮19
	5	125	254	216	186	254	460	—	25-2	4-∮22
	6	150	279	241.5	216	267	520	—	27-2	4-∮22
	8	200	343	298.5	270	292	580	—	30-2	4-∮22

project	Design	Pressure temperature standard	Structure length	Flange connection size	Test and inspection
standard	ANSI B16.34\API600	ANSI B16.34	ANSI B16.10	ANSI B16.5	API 598
