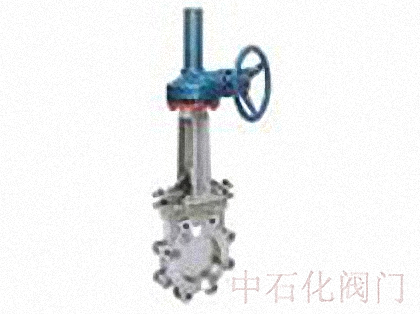

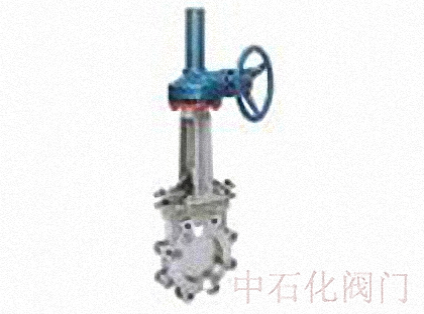

PZ543 bevel gear drive type knife gate valve is a kind of switch components for medium access. Nominal diameter is 500 mm (~ 2 "~ 20" NPS.
Note: parameters are for reference only, or is not complete. Valves can choose according to the different pressure, material, diameter, drive mode, etc. Specific electrical contact or online advice, please
Main ingredients: WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3, CF3M
Nominal pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa, 2.5 MPa, 150 lb
Applicable temperature: 0 ~ + 200 ℃ (specific temperature range depending on the seal material and characteristic of medium)
Leakage: hard seal: D (0.1 x DN mm3 / s liquid) soft seal: A level (zero leakage)
Form a complete set of accessories: 1, 2, the electromagnetic valve flange installation 3, air filter
Voltage electromagnetic valve: DC24V, AC220V
|

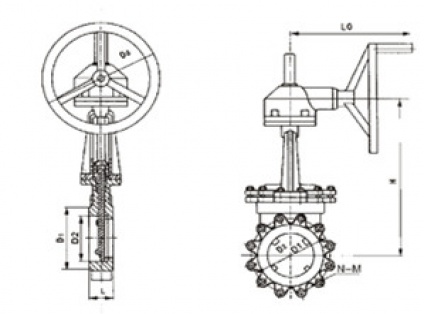

MPa
|
DN
|
L
|
D1
|
D2
|
H
|
n-M
|
MPa
|
DN
|
L
|
D1
|
D2
|
H
|
n-M
|
|
0.6MPa
|
50
|
48
|
90
|
110
|
300
|
4-M12
|
1.0MPa
|
50
|
48
|
100
|
125
|
300
|
4-M16
|
|
65
|
48
|
110
|
130
|
310
|
4-M12
|
65
|
48
|
120
|
145
|
310
|
4-M16
|
|
80
|
51
|
125
|
150
|
330
|
4-M16
|
80
|
51
|
135
|
160
|
330
|
4-M16
|
|
100
|
51
|
145
|
170
|
380
|
4-M16
|
100
|
51
|
155
|
180
|
380
|
8-M16
|
|
125
|
57
|
175
|
200
|
440
|
8-M16
|
125
|
57
|
185
|
210
|
440
|
8-M16
|
|
150
|
57
|
200
|
225
|
500
|
8-M16
|
150
|
57
|
210
|
240
|
500
|
8-M20
|
|
200
|
70
|
255
|
280
|
580
|
8-M16
|
200
|
70
|
265
|
295
|
580
|
8-M20
|
|
250
|
70
|
310
|
335
|
670
|
12-M16
|
250
|
70
|
320
|
350
|
670
|
12-M20
|
|
300
|
76
|
362
|
395
|
820
|
12-M20
|
300
|
76
|
368
|
400
|
820
|
12-M20
|
|
350
|
76
|
412
|
445
|
900
|
12-M20
|
350
|
76
|
428
|
460
|
900
|
16-M20
|
|
400
|
89
|
462
|
495
|
1020
|
16-M20
|
400
|
89
|
482
|
515
|
1020
|
16-M22
|
|
450
|
89
|
518
|
550
|
1150
|
16-M20
|
450
|
89
|
532
|
565
|
1150
|
20-M22
|
|
500
|
114
|
568
|
600
|
1250
|
16-M20
|
500
|
114
|
585
|
620
|
1250
|
20-M22
|
|
600
|
114
|
670
|
705
|
1500
|
20-M22
|
600
|
114
|
685
|
725
|
1500
|
20-M27
|
|
700
|
127
|
775
|
810
|
1750
|
24-M22
|
700
|
127
|
800
|
840
|
1750
|
24-M27
|
|
800
|
127
|
880
|
920
|
2000
|
24-M27
|
800
|
127
|
898
|
950
|
2000
|
24-M30
|
|
900
|
154
|
980
|
1020
|
2300
|
24-M27
|
900
|
154
|
1005
|
1050
|
2300
|
28-M30
|
|
1000
|
165
|
1080
|
1120
|
2500
|
28-M27
|
1000
|
165
|
1115
|
1160
|
2500
|
28-M30
|
|
1200
|
190
|
1295
|
1340
|
2800
|
32-M30
|
1200
|
190
|
1325
|
1380
|
2800
|
32-M36
|
Connecting flange: ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS
