Product introduction:

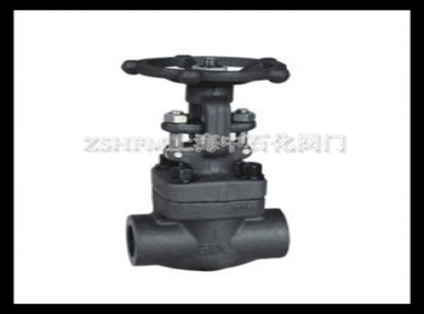

J61H, J61Y forged socket welding steel globe valve is suitable for Class150 ~ 2500, the working temperature - 29 ~ 425 ℃ (carbon steel) or - 29 ~ 500 ℃ (stainless steel) of small diameter pipe road, used to truncate or on line in the medium, choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media. Forged steel gate valve has small fluid resistance, wide applicable pressure and temperature range, unrestricted flow direction of medium, and good sealing performance.
Product application:
J61Y, J61H forged steel globe valve series products are not only suitable for low and medium pressure, but also for high pressure, in petroleum, chemical, pharmaceutical, chemical fertilizer, power industry and other working conditions, starting to cut off or put on the medium regulating pipeline.
Common models:
Forged steel globe valve common models are J11H, J11Y, J41H, J41Y, J61H, J61Y and so on.
Valve features:
1. Compact structure, beautiful shape, reduced runoff channel, structural features: B.B or W.B.
2. The sealing surface is made of alloy steel or hard alloy. The sealing materials are matched reasonably and the service life is long.
3. The disc is conical, and the valve stem is provided with an inverted seal with good sealing performance. The surface of valve stem is treated by nitriding, which has good corrosion resistance and friction resistance. Packing with flexible graphite, reliable sealing, flexible operation, small opening and closing torque.
4, can choose a variety of piping standards and connection forms (such as: socket welding, butt welding, threaded connection).
Scope of use: the product can be used in petroleum, chemical storage and other industries.
The product conforms to the standard: JB/T 7746
